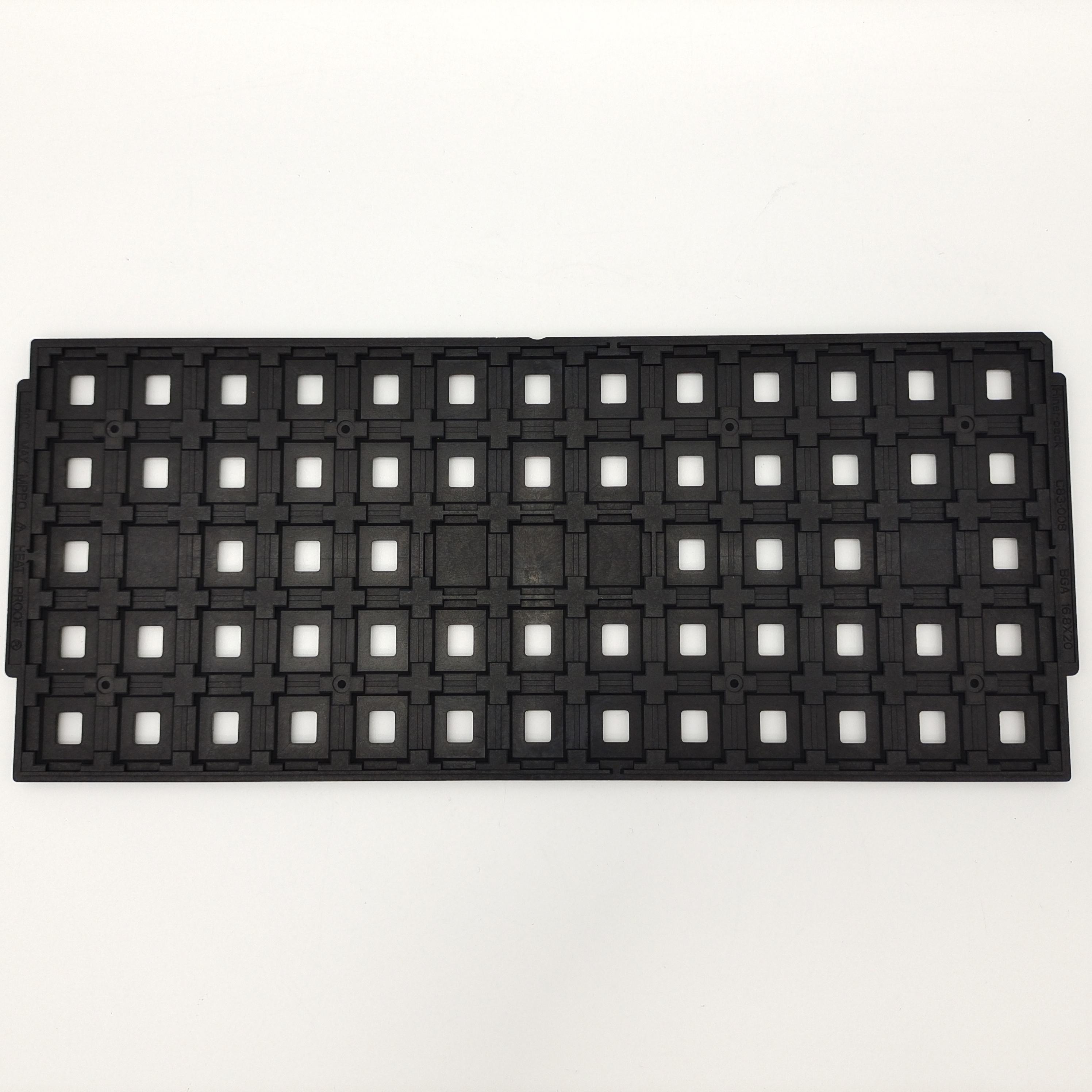

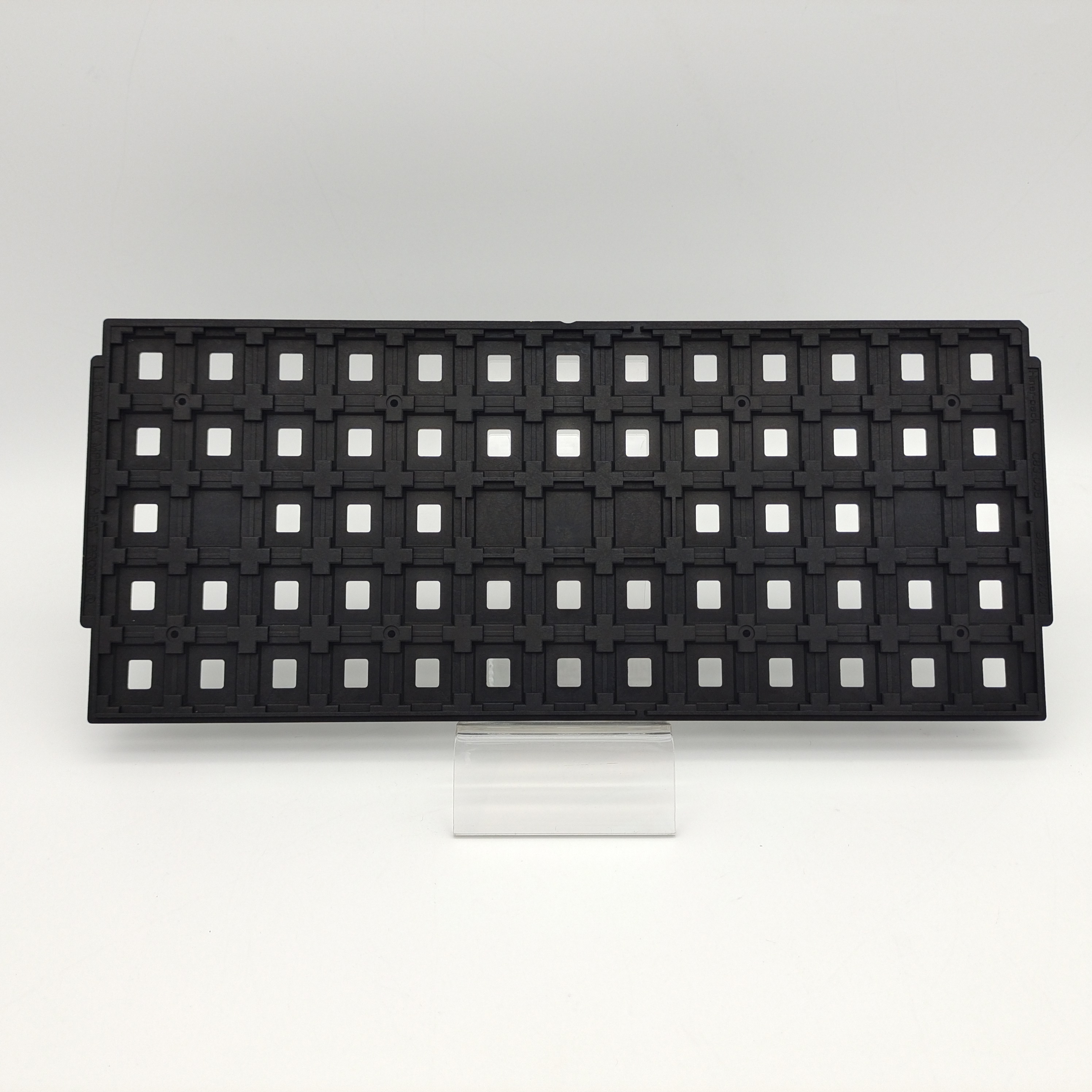

Custom Jedec Trays For Secure Component Storage Stackable Various Materials Available

Brand Name : Hiner-pack

Model Number : HN23109

Place of Origin : SHENZHEN CN

Certification : ISO 9001 ROHS SGS

MOQ : 1000 pcs

Price : $1.5~$6(Prices are determined according to different incoterms and quantities)

Packaging Details : 70~100pcs/carton(According to the customer demand)

Delivery Time : Mold:About 25 Days / Product:7~10 Days

Payment Terms : 100% Prepayment

Supply Ability : 2000PCS/Day

Type : BGA IC

Stackable : Yes

Material : MPPO.PPE.ABS.PEI.IDP

Hs Code : 39239000

Custom : Support

Overall dimension*2 : 322.6x135.9x7.62mm

Pocket Size : 16.8*20*1.37mm

Resistance : 1.0x10e4-1.0x10e11Ω

Contact Now

Custom Jedec Trays For Secure Component Storage Stackable
Product Description:

HN PN. Description External Size/mm Pocket Size/mm Matrix QTY
HN23109 BGA 16.8X20 322.6x135.9x7.62 16.8*20*1.37 5X13=65PCS
TYPE Brand Flatness Resistance Service
BGA IC Hiner-pack MAX 0.76mm 1.0x10e4-1.0x10e11Ω Accept OEM,ODM
Stackability

The trays are stackable and have been designed to facilitate efficient storage and transportation. This particular feature aids in maximizing the utilization of space in shipping and storage surroundings.

Ventilation

Many JEDEC trays come with ventilation holes or slots that allow for proper airflow. This feature is essential in preventing heat buildup during transportation, particularly for components that may be susceptible to temperature changes.

Custom Jedec Trays For Secure Component Storage Stackable Various Materials Available

Features:

Customizability:

While there are standard designs for JEDEC trays, some manufacturers may offer customized trays to accommodate specific device shapes or sizes. This customizability allows manufacturers to create packaging that is tailored to the needs of their products, ensuring a secure and well-fitting package. Customers can work with manufacturers to create trays that are suitable for a wide range of devices, from small chips to larger modules.

Technical Parameters:

The standard JEDEC TRAY structure and shape meets international standards and is designed to fulfill a variety of functions including carrying electronic components and packaging ICs. Additionally, the tray is designed to meet requirements of automated feeding systems and match automation equipment, leading to easy loading and efficient work.

Hiner-pack specializes in providing 100% customized JEDEC TRAY solutions that protects your ICs based on the type of chip package. Our website showcases various JEDEC TRAY designs made specifically to fit many types of packaging including BGA, FBGA, LGAQFN, QFP, PGA, TQFP, LQFP, SoC, etc. We can provide effective design solutions and wafer-level package protection for your products.

Applications:

Applications

JEDEC trays are extensively employed in the semiconductor industry for various purposes such as:

  • Semiconductor manufacturing and assembly
  • Testing of electronic components
  • Shipping and storage of integrated circuits (ICs) and other sensitive devices

This wide range of applications highlights the versatility of JEDEC trays. They are specifically designed to enable the smooth and secure handling of delicate electronic components. The trays conform to industry standards and make it possible to transport ICs and other electronic devices safely. This is a critical requirement for the semiconductor industry, where damage to such sensitive components can result in significant financial losses.
