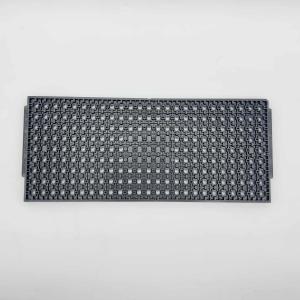

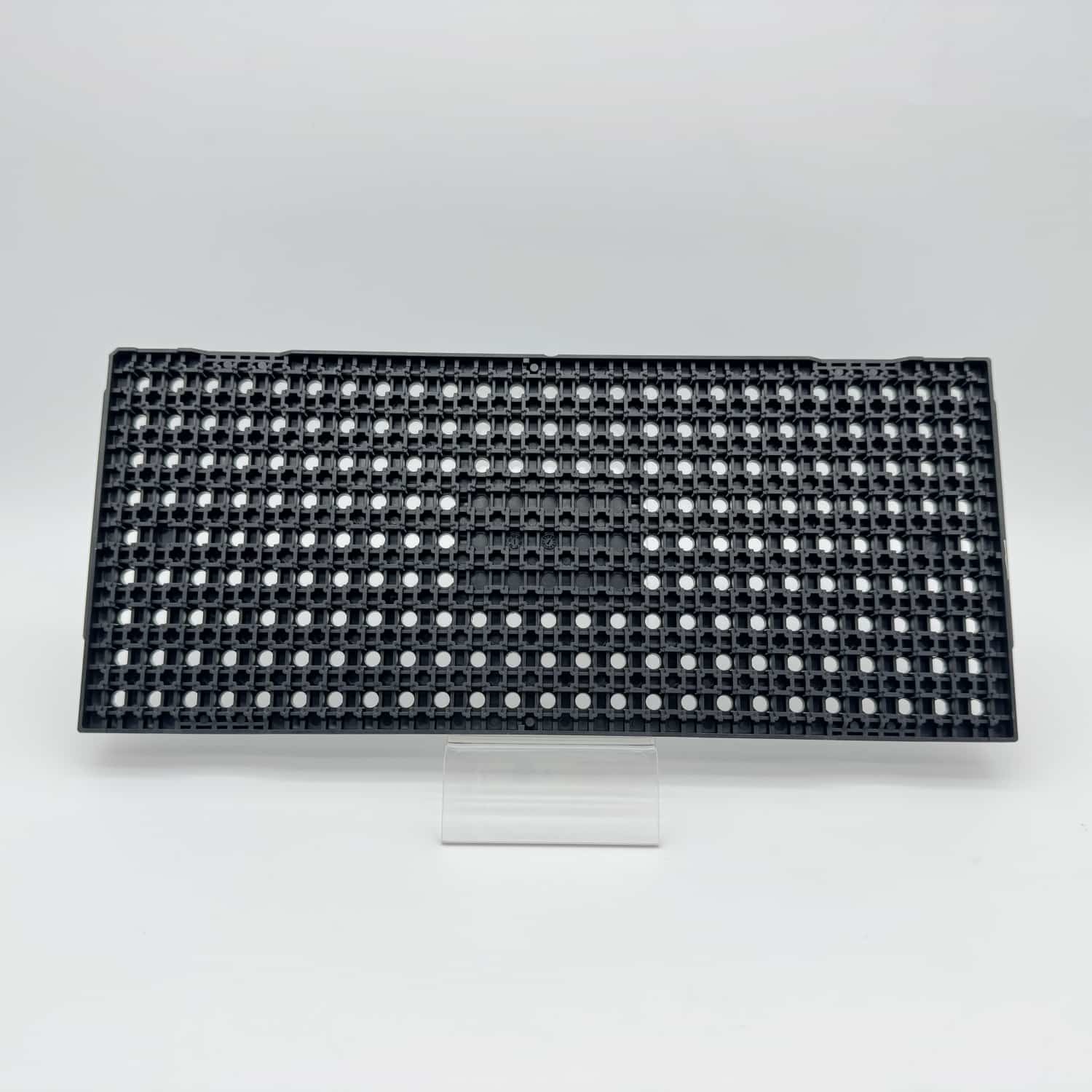

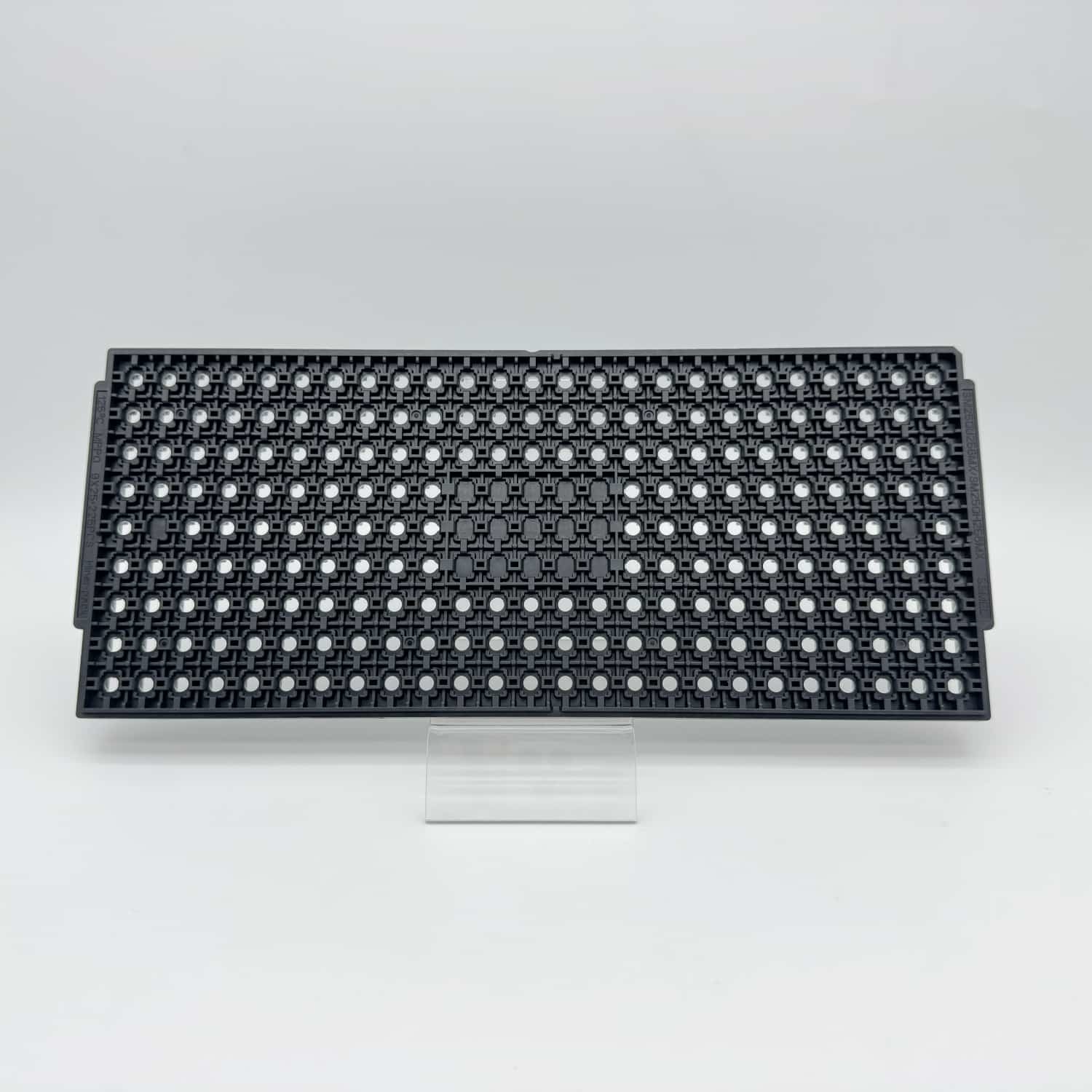

Product Description:
JEDEC does not specify the tray material but the tray must be permanently marked (usually by molded characters) with the maximum operating temperature to which the empty tray can be subjected for 48 continuous hours without violating the dimensional tolerance of the tray.
Hiner-pack manufactures most of our JEDEC trays of ESD-safe polymers but also uses a variety of custom materials based on application requirements.
Technical Parameters:
| Brand | Hiner-pack | Outline Line Size | 322.6*135.9*12.19mm |
| Model | HN24047 | Cavity Size | 6*8*0.8mm |
| Package Type | IC Component | Matrix QTY | 9*25=225PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM,ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | ROHS |
| Usage | Packaging of Electronic Components,Optical device, |
| Feature | ESD, Durable, High Temperature, Waterproof, Recycled, Eco-friendly |
| Material | MPPO.PPE.ABS.PEI.IDP...etc |
| Color | Black.Red.Yellow.Green.White and custom color |
| Size | Customized size, rectangle,circle shape |
| Mold type | Injection Mold |
| Design | Original sample or we can create the designs |
| Packing | By Carton |
| Sample | Sample time: after draft confirmed and payment arranged |
| Sample charge: 1. Free for stock samples |
| 2. Custom Tray negotiated |
| Lead Time | 5-7 Working days |
| The exact time should according to the ordered quantity |
Advantages:
• Industry Standard
JEDEC matrix trays are recognized and understood. They give you instant access to equipment and accessories. JEDEC outlines have become the common language of automation.
• Precision Built In
JEDEC outlines have well established reference features and datums. The outline dimensions and tolerances take the risk out of equipment design, accelerating development time and lowering cost.
• Automation Ready
Asymmetric end tabs ensure proper orientation. Standard recesses and vacuum pickup points work well with many types of elevator and feed mechanisms. Interlocking features keep tray stacks stable.
